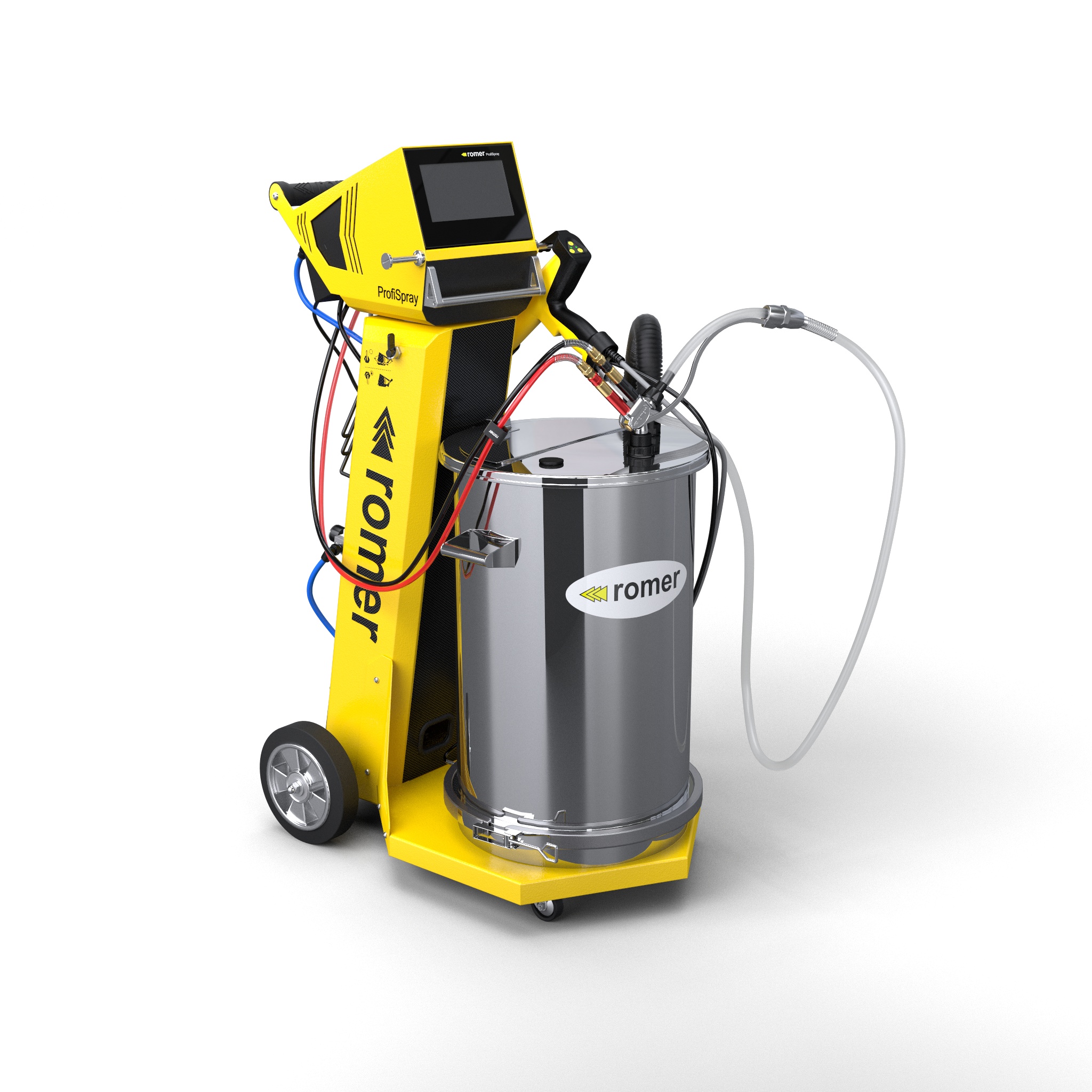

Romer ProfiSpray H



** Columbia Coatings will cover shipping charges up to $500 **

The integrated 100 kV cascade duplicator provides maximum charging capacity. This means that more powder reaches the workpiece, and less goes into recovery system! Precise electronic control of pneumatic valves ensures accurate metering and repeatable amount of powder, which allows for more uniform coatings.

ProfiGun PM-1

• Lightweight ergonomic gun, perfectly balanced with a contoured handle.
• Powder flow adjustment and program change in the spray gun.
• Up to 100,000V ceramic cascade effectively charges all types of powders.
• The new generation of nozzles ensures perfect powder penetration into complex shapes.
• The profiled nut allows for a good grip.
• The high carbon conductive handle provides great grounding for the coater.
• Spray gun made of special materials with increased impact resistance.
• Fully removable design with replaceable powder path tube.

ProfiJector

• Design of a new efficient injector.
• The most effective feed angle demonstrated by research.
• Saves powder and air compared to right angle injectors.
• Compared to other pumps, it has relatively low running costs.
• The injector is subject to a European patent.

PSS driver

• 7 inch glove-friendly touch panel
• 3 factory presets (overcoating, hard-to-reach surfaces, flat surfaces)
• Graduation every 0.1kV and 0.1uA in the full adjustment range
• Advanced pneumatic valves to control the dose of air (Patent pending)
• Real air flow measurement, reacts to errors such as pressure drops or system obstruction
• Advanced diagnostic tools
• Ability to name custom programs

Ceramic cascade with charging up to 100,000 volts!
The high-precision ceramic cascade manufactured in Poland ejects ions even seventeen thousand times a second! Charges the powder better than ever before, so less powder reaches the dust collector and more is left on the part!

ROMER ProfiCharge
Precise current settings even below 10uA, the current adjustment range thus starts from the very bottom graduated to 0.1uA

Precise air dose (p patent)
With Romer’s electronically controlled needle valves, air delivery is even more precise. This is possible thanks to the use of specially developed integrated flow meters that respond to changes in real time.

Nozzles made of non-adhesive materials with high puncture resistance
Specially developed nozzles are made of materials resistant to electrical breakdowns, and at the same time do not adhere to powder paint, thus preventing clogging, and facilitate cleaning when changing colors.

Specially designed operator grounding handle

Because safety is our priority, adequate grounding must be ensured, therefore the handle of the PM-1 spray gun contains special carbon fibers that ground the operator.

Automatic gun cleaning function
For quick and more accurate color changes, we have developed an automatic gun purge function, activated from the handle or screen – it cyclically blows out the gun with compressed air

Adjustable crevice nozzle attachment
As a standard, each set of nozzles include a crevice nozzle attachment, which allows you to reduce the gap clearance. The spread in the range can be adjusted from 30° up to 50°

Powder path with no redundant connections
The ProfiGun gun has been designed in such a way that the powder tube, starting from the quick coupler to the nozzle itself, is made of one piece, not connected, and has no “knees”, which effectively eliminates the possibility of its leaking.

Powder Hose Quick Coupler
As standard, the ProfiGun is equipped with a quick-release coupling for quick hose changes.
